The Electric Trap: Why Your White Ink Is Struggling on Electric Presses
The Why: The Missing Pitch from Sales Reps
We see this question pop up weekly on shop floor forums: “Why can’t I get a bright, smooth white print on my electric press without turning the shirt into armor?”
Electric presses like the Brown Electraprint or the Anatol Volt are engineering marvels for shop owners who want to bypass noisy air compressors, cut energy bills, and maintain low-maintenance shops. However, there is a fundamental mechanical limitation that equipment salespeople, who have usually never spent an eight-hour shift pushing thick white plastisol conveniently forget to mention.
When printing white ink, success relies on laying the ink on top of the garment weave rather than driving it into the fabric. Pushing ink into the fibers overwhelms the fabric, destroys garment softness, and causes severe fibrillation-where loose cotton fibers stick up through the ink layer, creating a dull, rough finish. Electric print heads often struggle here because they regulate downward force through rigid mechanical travel height rather than true dynamic pressure.
The How: Mechanical Reality & Process Control
Understanding the physics of your print head is the key to mastering your ink deposit.

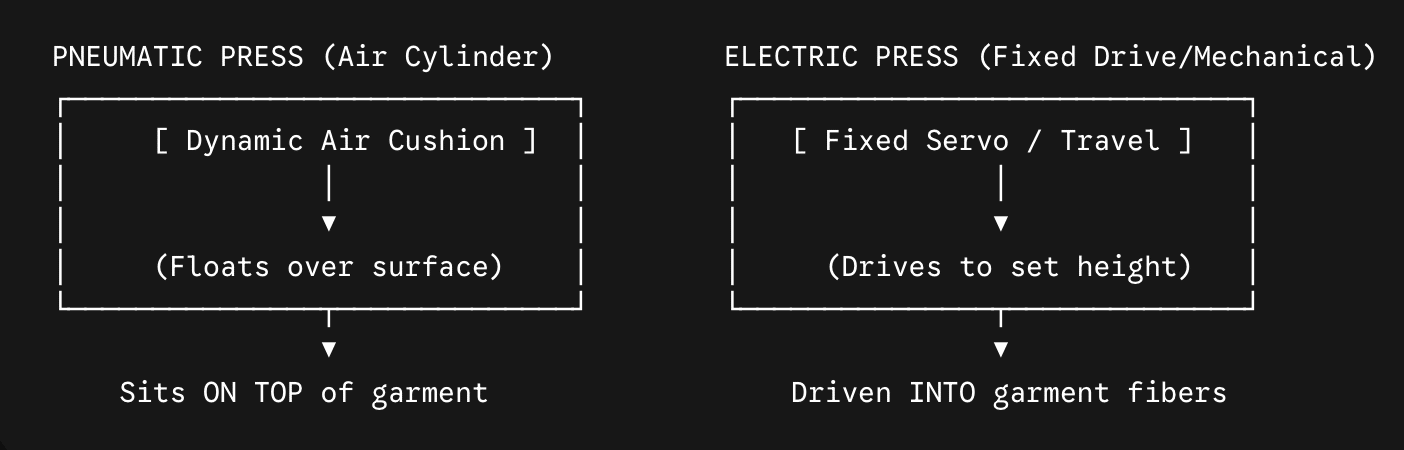

Electric vs. Pneumatic Pressure
- Pneumatic Pressure (Dynamic Cushion): Air-driven cylinders use compressed air regulators set to a specific PSI (typically 35–40 PSI for base coats). The squeegee cylinder acts like a dynamic air cushion. It exerts continuous, flexible pressure that allows the squeegee blade to clear the mesh cleanly while floating over the garment surface.
- Electric Travel Height (Rigid Distance): Electric print heads rely on mechanical stop positions or stepper/servo motors to set squeegee height. Because there is no flexible air pocket, adjusting "pressure" actually means forcing the squeegee blade physically lower. Instead of floating, the blade drives the thick white ink into the garment weave, pushing surface fibers upward as the screen peels away.
Step-by-Step Optimization for Electric Presses
If you operate an electric press, you must compensate for this mechanical rigidity by controlling your prepress and press setup variables:
- Shear the Ink Thoroughly: Pre-shear your white plastisol ink vigorously before putting it into the screen. Mix it until it reaches a smooth, honey-like consistency to lower its viscosity under motion.
- Use Triple-Durometer Squeegees: Standard soft squeegees will flex and roll under rigid mechanical travel, driving ink into the shirt. Switch to a 60/90/60 triple-durometer blade. The hard 90-durometer inner core prevents blade deflection, while the softer 60-durometer outer edge shears ink cleanly.
- Dial In Proper Off-Contact: Set off-contact between 1/16" and 1/8" (roughly the thickness of a dime). Ensure mesh tension is high (ideally >20 Newtons). Proper screen tension provides the "snap-off" force needed to peel cleanly away from the garment without pulling fibers up.
- Optimize Squeegee Angle: Set your blade angle between 10° and 15°. Avoid excessive angles, which create dot gain and fiber disturbance.
- Back Off the Depth: Raise your electric print head travel height until the squeegee barely clears the stencil. Stop forcing the blade downward.
The Result: Soft, Opaque, and Vibrant Prints
Following these adjustments changes how white ink settles on your garment:
- Opacity: The first stroke deposits a smooth, uniform base coat sitting on top of the fabric knit rather than sinking into it.
- Texture: Fibrillation is eliminated. The surface remains soft and smooth rather than feeling like sandpaper or heavy plastic.
- Flash Efficiency: Because the ink film is sitting on top, it gels faster under your flash dryer without over-baking or causing dye migration.
Mastering these settings lets you maximize the low-maintenance benefits of an electric press while matching the print quality of a pneumatic setup.
